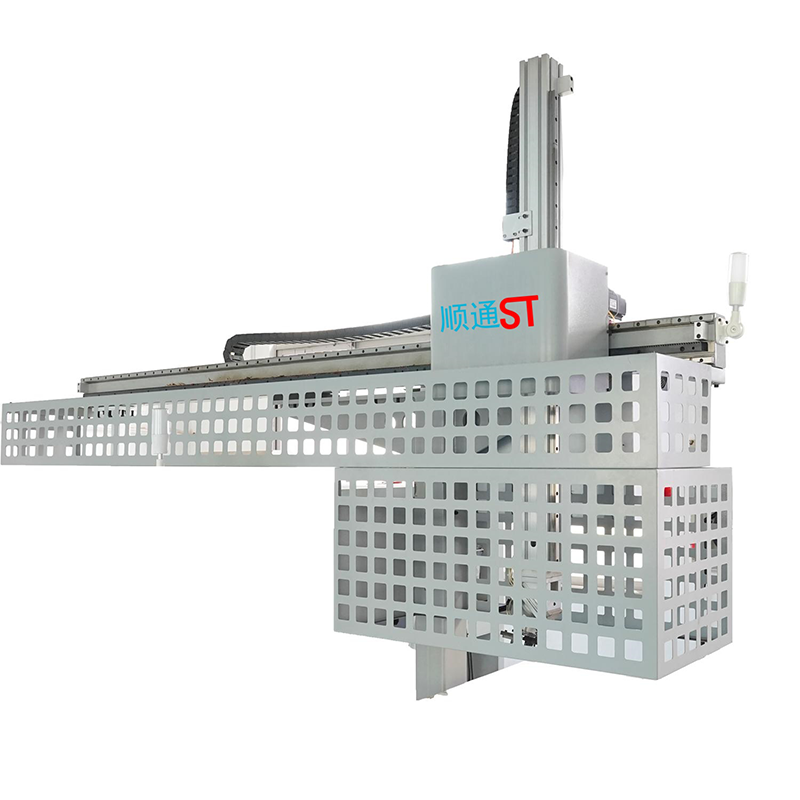

Gantry Manipulator

Core Structure

1. The gantry frame is the basic support of the manipulator, usually made of high-strength aluminum alloy profiles or welded steel, and is divided into crossbeams (X-axis), columns (Z-axis), and longitudinal beams (Y-axis), ensuring structural rigidity and operational stability.

2. The main drive systems include servo motors + ball screws (for high-precision applications) and servo motors + timing belts (for high-speed, light-load applications). Some heavy-duty gantry manipulators use gear and rack drives to ensure precise movement and response speed.

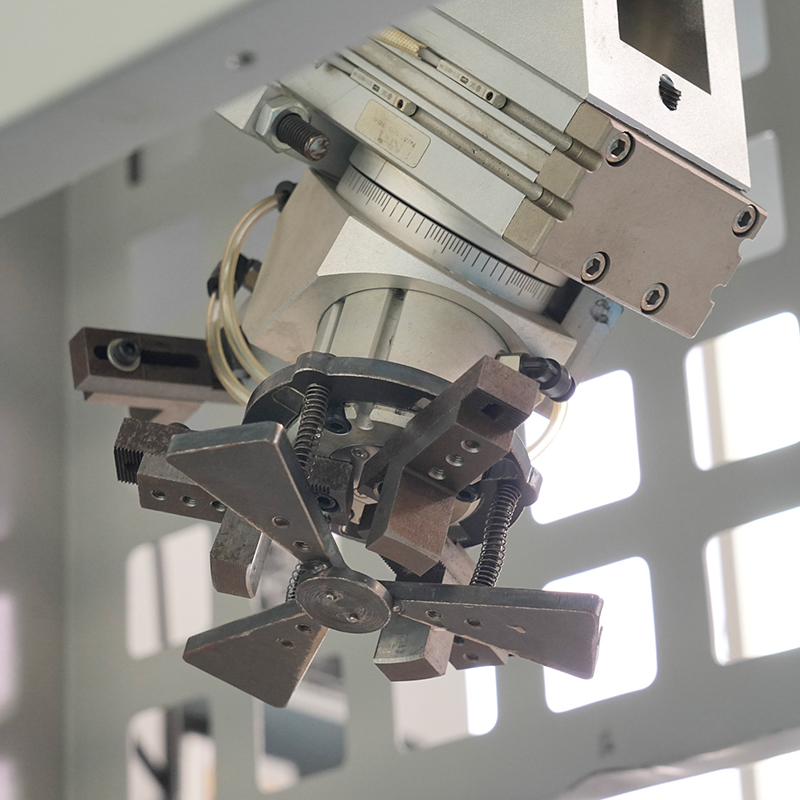

3. The end effector, or gripper, can be pneumatic grippers, electric grippers, or vacuum suction cups, depending on the type of workpiece, adapting to different shapes (block, plate, cylindrical) and materials (metal, plastic).

4. The control system is centered around a PLC or dedicated motion controller, coupled with a human-machine interface (HMI), enabling functions such as manual/automatic mode switching, motion trajectory programming, and fault diagnosis. It supports linkage with CNC machine tools, assembly lines, and other equipment.

Main Features

1. High degree of automation: It can replace manual labor for repetitive, high-intensity material handling tasks, reducing labor costs and avoiding human error.

2. Precise positioning: Repeatable positioning accuracy can reach ±0.05mm~±0.1mm, meeting the loading and unloading requirements of precision machining.

3. Flexible expandability: The stroke and load capacity can be customized according to the length of the production line and the weight of the workpiece. It supports multi-unit operation to form an automated production line.

4. High reliability: Simple structure, low failure rate, adaptable to harsh industrial environments such as high temperature and dust, and strong stability for 24-hour continuous operation.

Core Application Areas

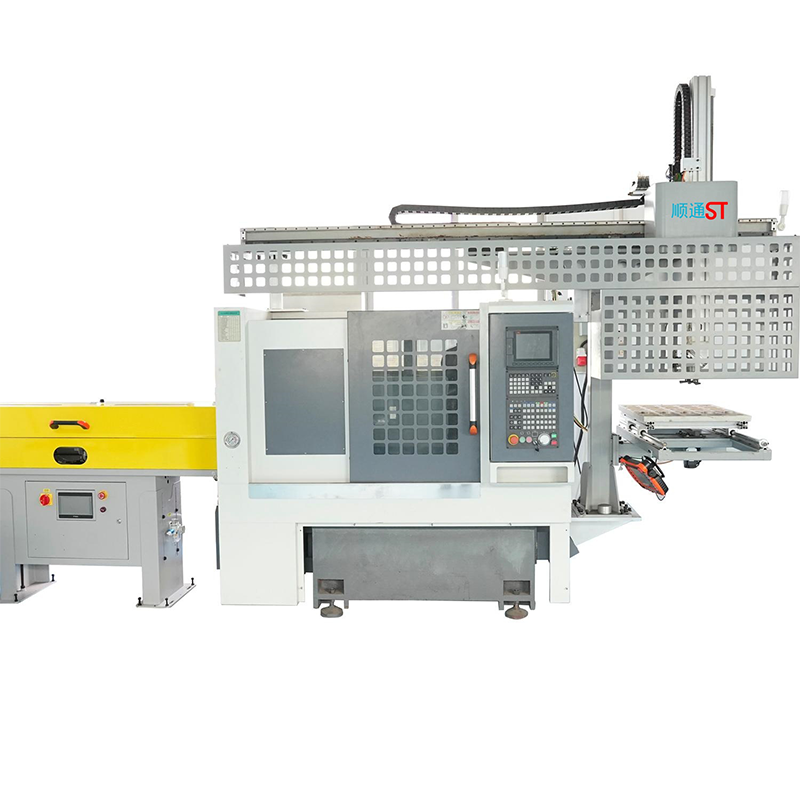

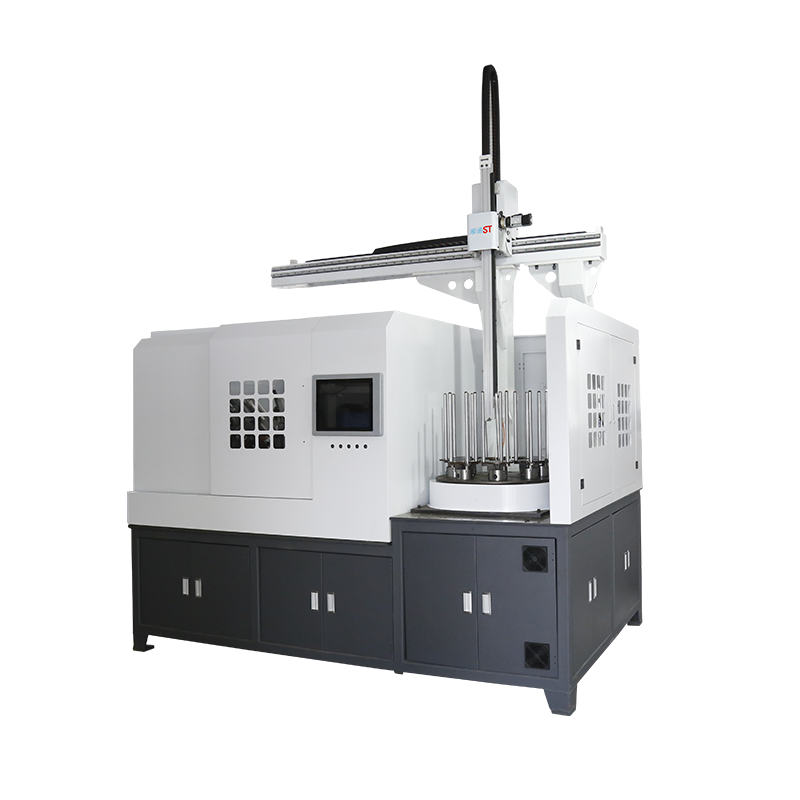

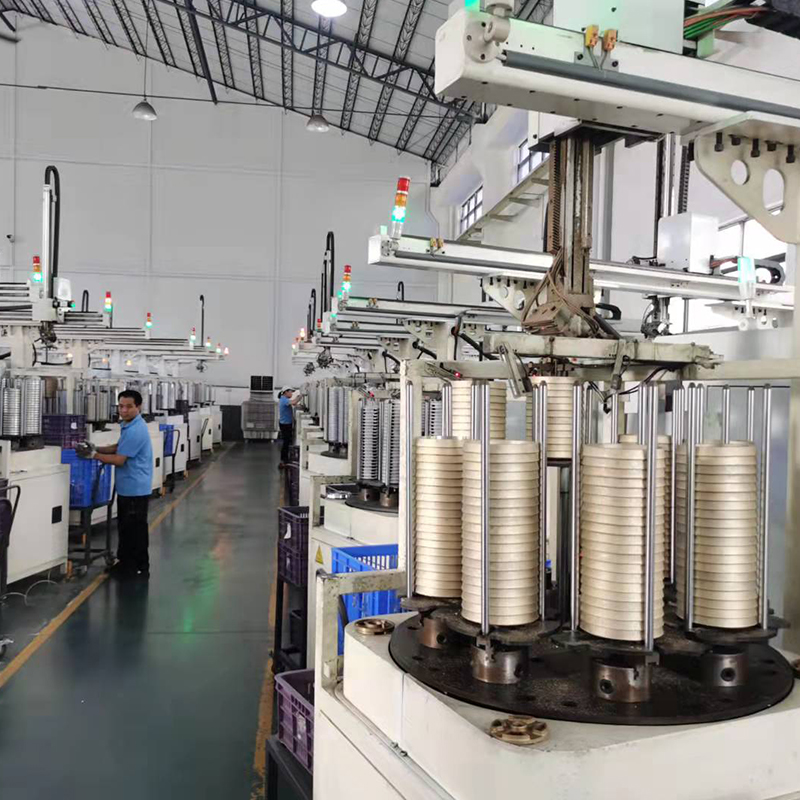

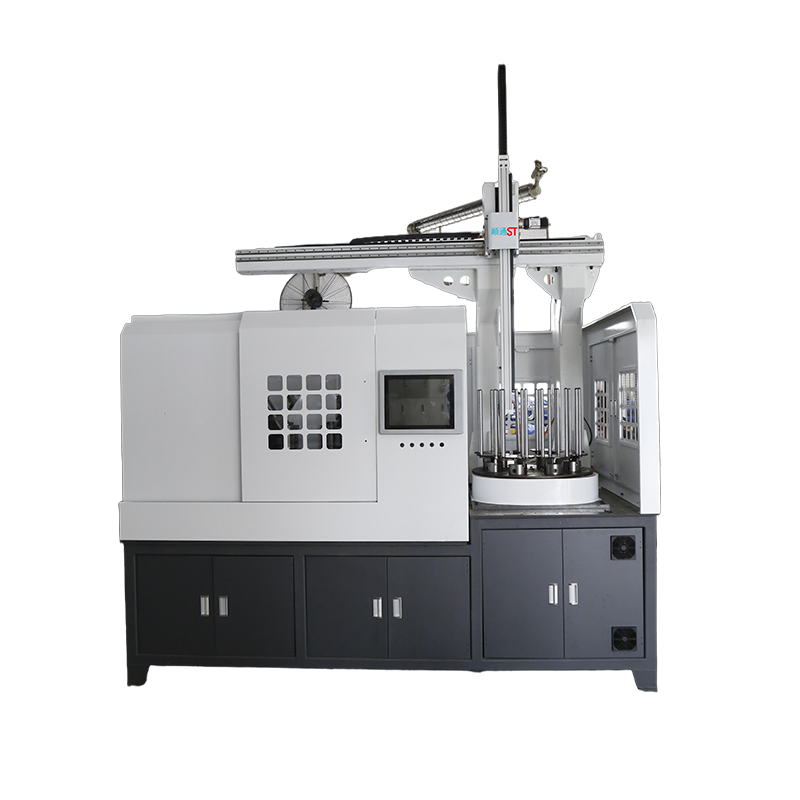

CNC Machine Tool Loading and Unloading: This is the most mainstream application scenario for gantry robots, adapting to lathes, milling machines, machining centers, grinding machines, and other equipment to achieve fully automated processes of workpiece automatic grasping, clamping, processing, unloading, and stacking. This significantly improves machine tool utilization and processing efficiency, and is widely used in mass production fields such as automotive parts, 3C accessories, and hardware.

Warehousing and Logistics Sorting: In automated warehouses and e-commerce sorting centers, gantry robots can cooperate with conveyor belts and shelving systems to complete the handling, sorting, and stacking of goods in and out of storage.  Compared with manual sorting, efficiency is increased by 3-5 times, suitable for the rapid turnover of boxed goods and bagged materials.

Stamping/Forging Production Lines:  For the process characteristics of stamping and forging machines, gantry robots can achieve workpiece transfer between multiple workstations, replacing manual labor in high-risk, high-frequency stamping operations, avoiding industrial accidents, and ensuring the consistency of stamped parts. Used in production lines such as automotive body stamping and home appliance shell forming.

Metal Processing/Heat Treatment: In welding, cutting, heat treatment, and other processes, gantry robots can handle high-temperature workpieces or heavy metal components, and cooperate with special fixtures to achieve precise positioning. Suitable for heavy industrial fields such as construction machinery and shipbuilding.

Photovoltaic/Lithium Battery Industry: In photovoltaic cell handling and lithium battery cell sorting and assembly production lines, lightweight gantry robots, with their advantages of high precision and high cleanliness, complete the non-destructive handling of fragile and precision components, meeting the automated production needs of the new energy industry.
