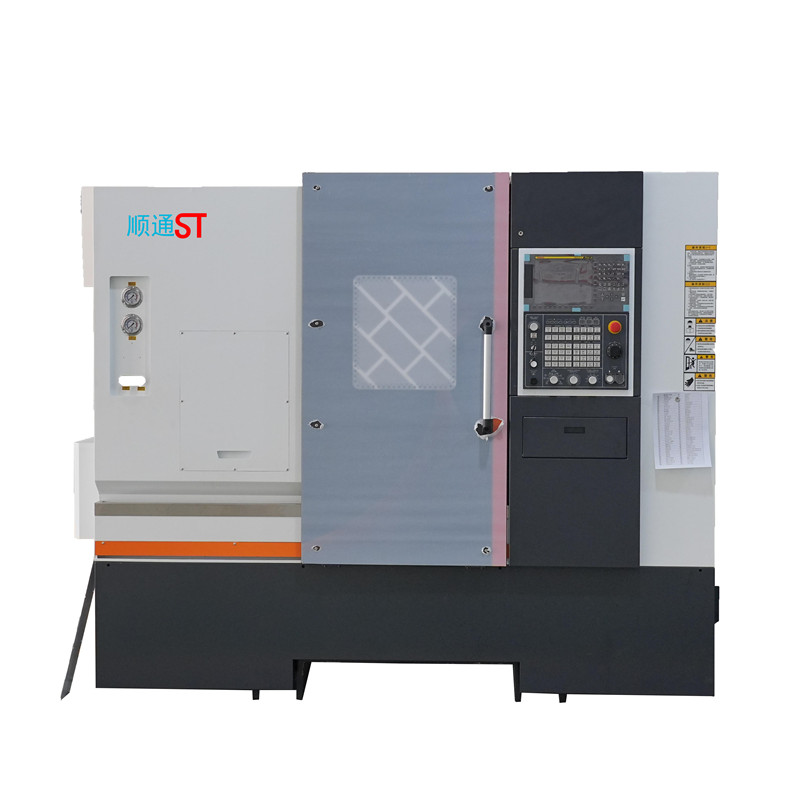

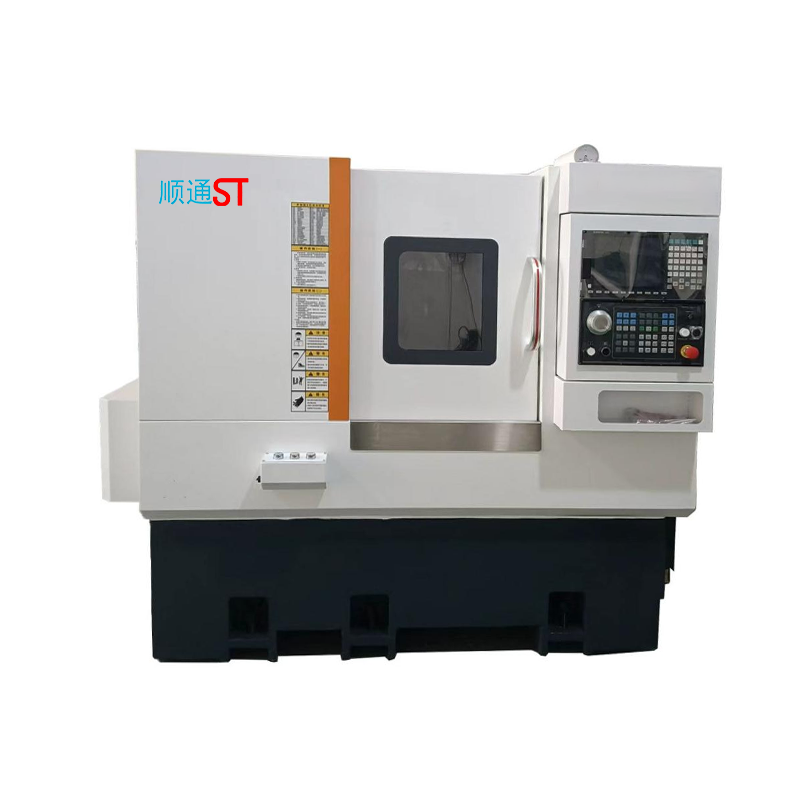

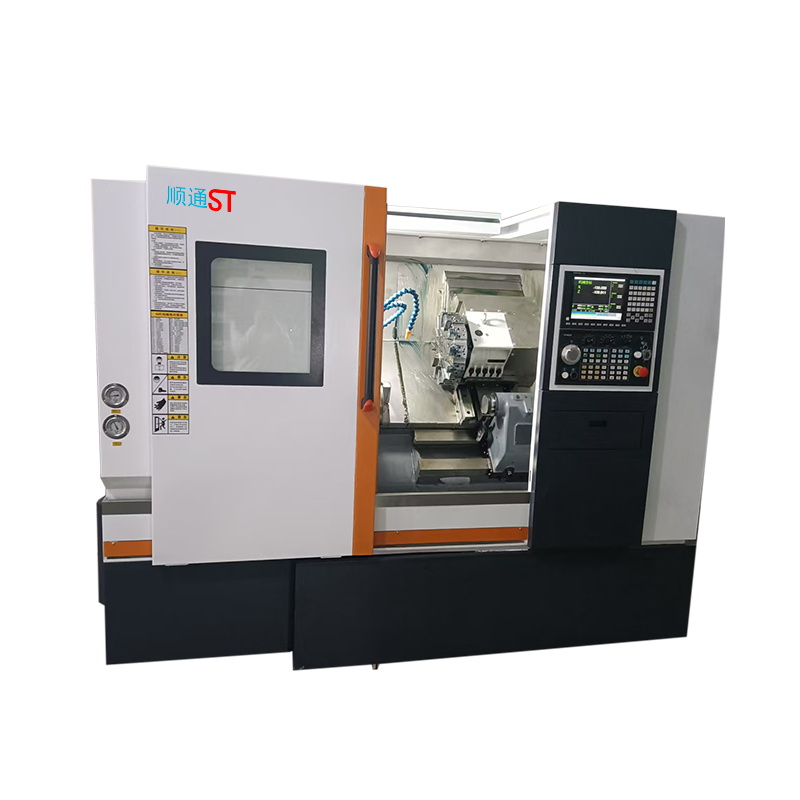

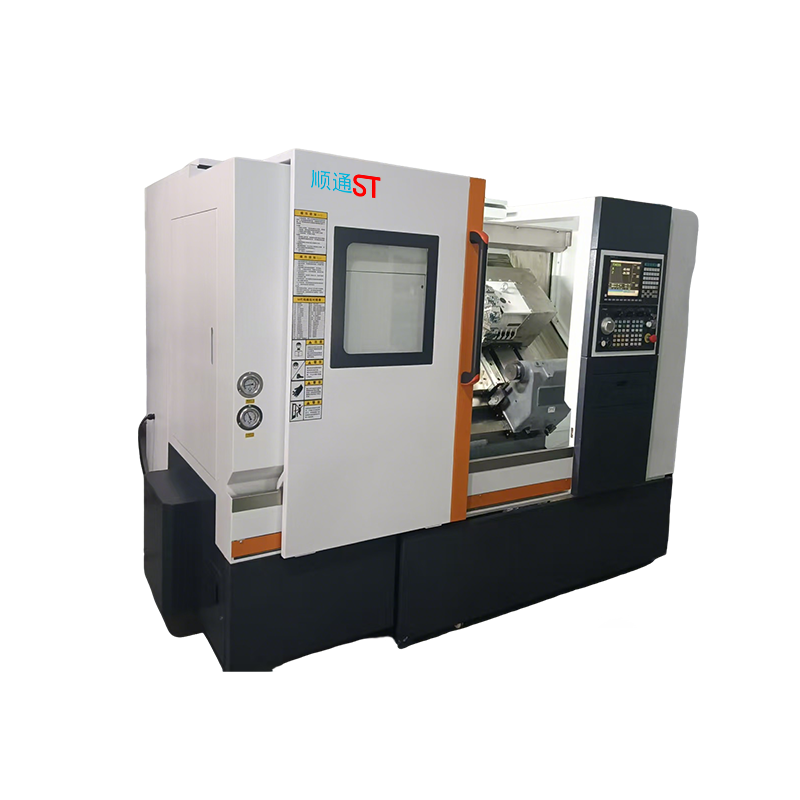

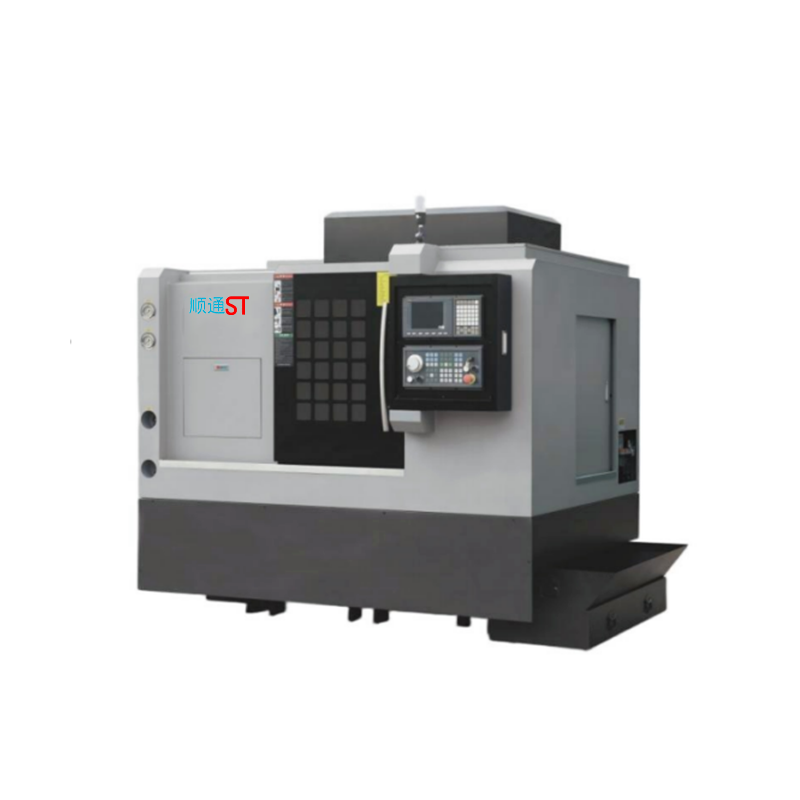

CNC Lathe

Core Advantages: Three Key Highlights, Creating a Powerful Machining Tool

1. Micron-Level Precision Cutting, Achieving Excellent Quality

Equipped with a high-performance CNC system, positioning accuracy reaches ±0.005mm, and repeatability is ±0.003mm, accurately completing complex machining processes such as outer diameter, inner hole, thread, taper, and arc.

Equipped with precision ball screws and high-rigidity linear guides, it features small running clearance and strong vibration resistance, maintaining stability even during high-speed cutting, effectively avoiding burrs and ripples on the workpiece surface, resulting in a finished product pass rate of up to 99.8%.

2. High-Efficiency Cutting, Significantly Shortening Machining Cycles

Using a high-power spindle motor, the maximum speed can reach 5000 r/min.  Combined with a powerful chuck and special tools, it achieves powerful cutting and high-speed feeding, improving machining efficiency by more than 40% compared to traditional lathes.

Supports automatic feeding, automatic clamping, and automatic unloading, allowing for 24-hour continuousoperation, reducing manual intervention time, and is especially suitable for mass production of shaft, disc, and sleeve parts.

3. Intelligent and Convenient, Reducing Operation and Maintenance Costs

Equipped with a user-friendly human-machine interface, supporting manual, semi-automatic, and fully automatic operation modes. Program editing is simple and intuitive, allowing new operators to be trained quickly, reducing labor costs.

The machine body uses an integral cast iron bed, which undergoes aging heat treatment to eliminate internal stress, resulting in strong deformation resistance and a long service life; the built-in intelligent lubrication and fault diagnosis system monitors equipment status in real time, automatically warns of faults, and reduces maintenance costs by 50%.

Applicable Fields: Full-Scenario Coverage, Meeting Diverse Machining Needs

✅ Automotive Parts: Machining of drive shafts, crankshafts, wheel hubs, and gear blanks

✅ 3C Electronics: Machining of precision bushings, connectors, and miniature parts

✅ General Machinery: Machining of various standard parts, non-standard parts, and hydraulic components

✅ Hardware Tools: Machining of wrenches, screwdriver bits, and bearing races

Technical specifications

Configuration parameters
