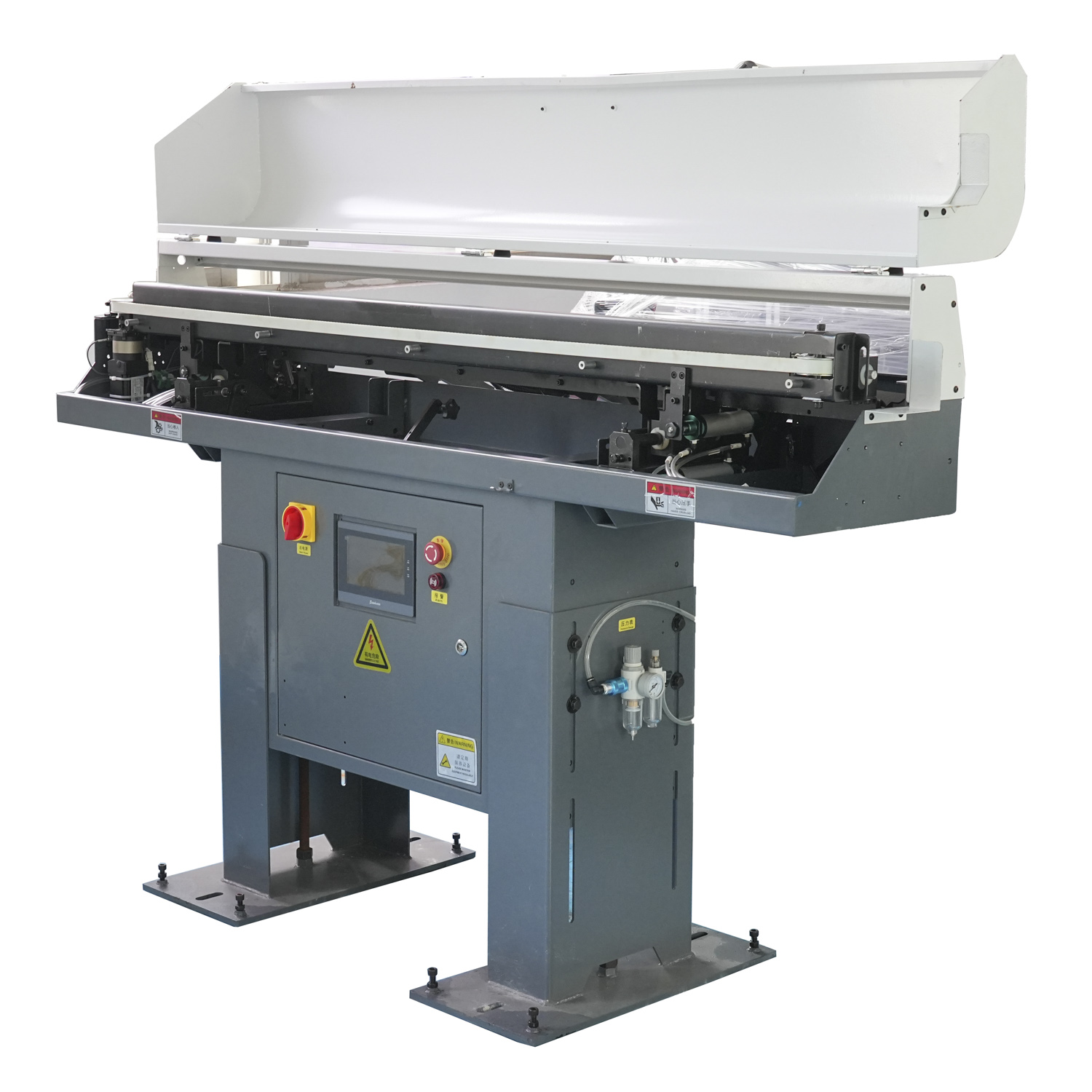

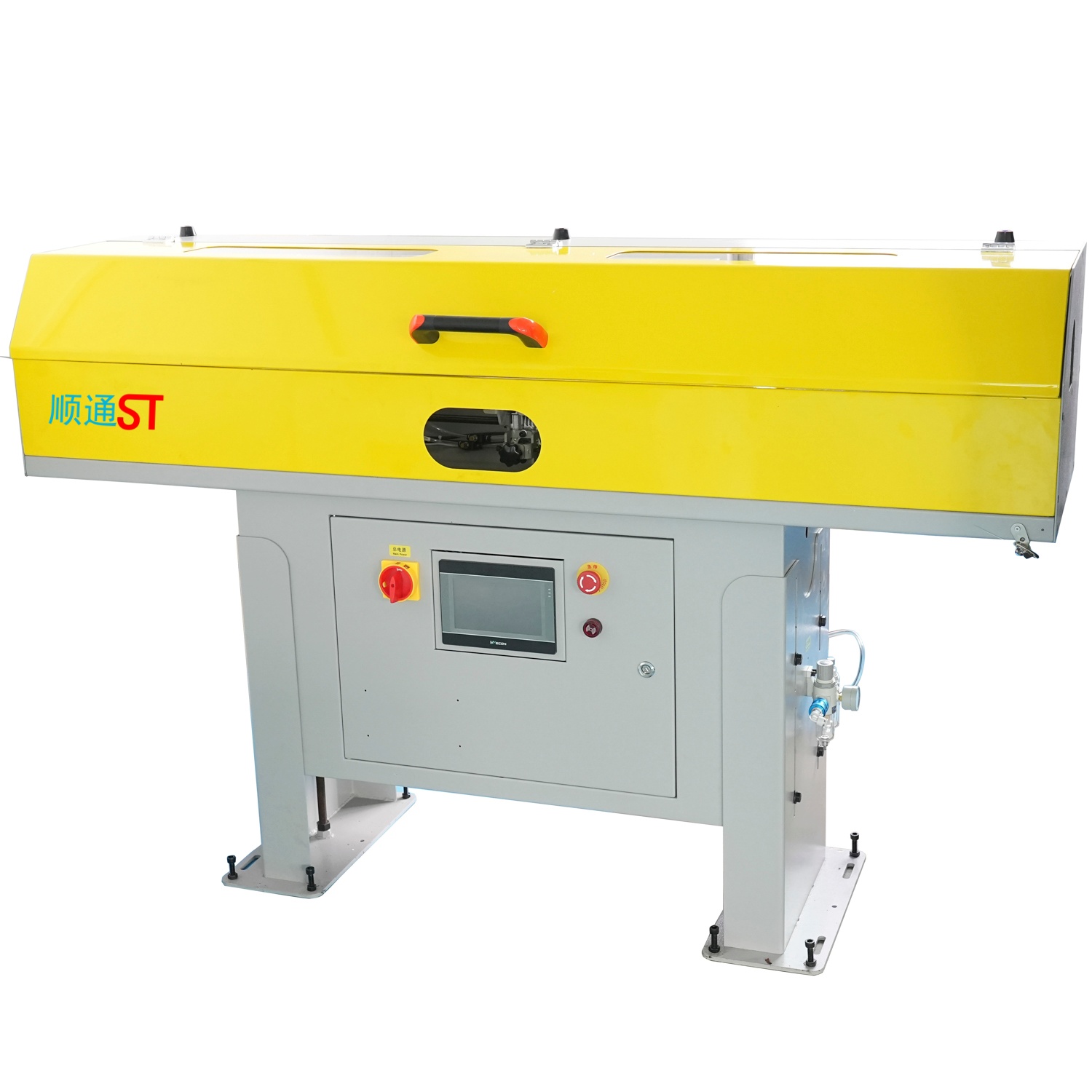

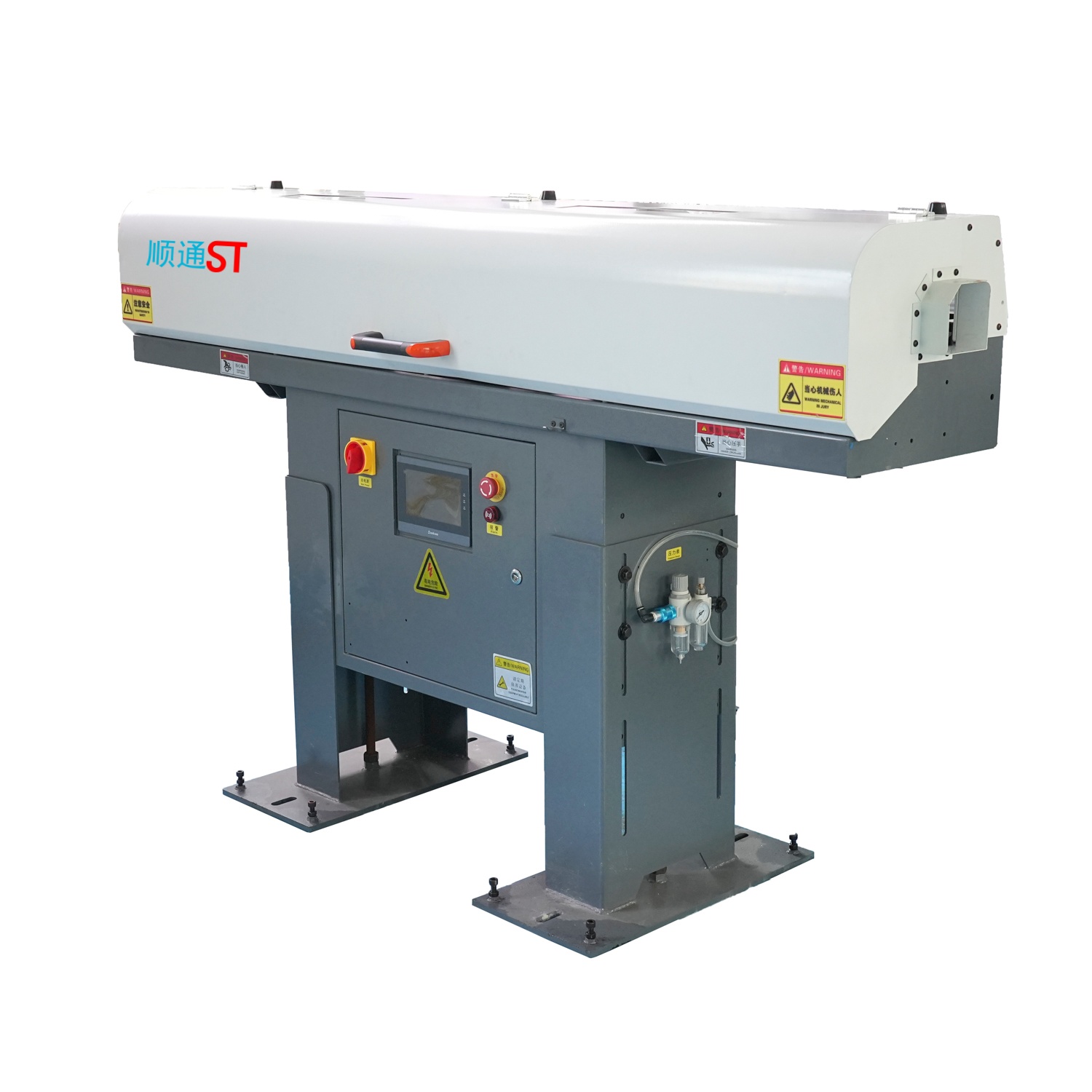

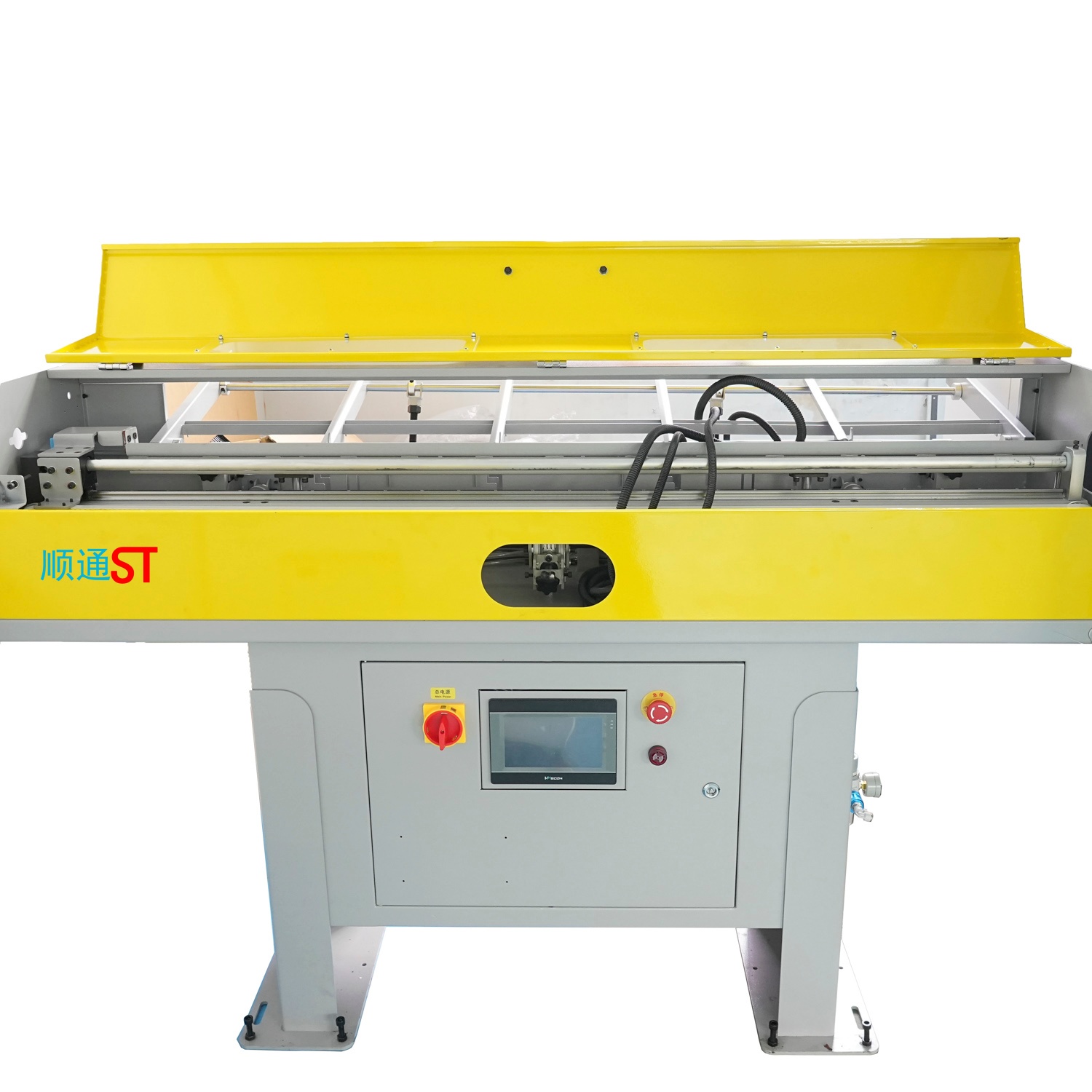

Material Feeding Machine

High-efficiency feeding and precise empowerment – Shuntong automatic feeding machines are compatible with CNC machine tools, machining centers, stamping equipment, and other applications, achieving continuous, stable, and precise material feeding. This reduces labor costs and increases production efficiency by over 30%, providing a robust front-end guarantee for industrial automation production lines.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Core Structure and Working Principle

1. Working Principle

1. Material Loading: Materials enter the feeding machine's inlet through a hopper, conveyor belt, or manual feeding;

2. Power Drive: The drive system receives instructions from the control system and drives the feeding mechanism (such as rollers, vibratory feeders) to operate;

3. Precise Transportation: Under the constraint of guiding devices, the materials move at a preset speed and stroke. The positioning device detects the material position in real time and feeds it back to the control system;

4. Coordinated Operation: When the material reaches the designated workstation (such as a CNC lathe chuck, stamping press mold), the control system sends a signal to the main equipment, triggering the processing action; after processing is completed, the feeding machine automatically transports the next batch of materials, achieving continuous cyclic operation.

Main Classifications of Material Feeding Machines (by Feeding Method/Structure)

Type	Key Features	Applicable materials / scenarios
Vibratory feeder (vibratory bowl)	Utilizing electromagnetic vibration to sort and convey materials along a spiral track, this system features a simple structure and low cost, making it suitable for automatic sorting of small parts.	Electronic components (screws, pins), small hardware parts (pins, washers)
Servo feeder	Servo motor driven, offering high positioning accuracy (±0.01mm) and adjustable feeding speed, supporting continuous/intermittent feeding.	Metal sheets, coils, high-precision shaft parts (for CNC lathes, stamping machines)
Pneumatic feeder	Pneumatic drive, featuring a compact structure, simple maintenance, and low cost, suitable for light loads and short-stroke feeding.	Thin sheets, plastic parts, small workpieces (for stamping machines, injection molding machines)
Roller feeder	Dual-roller extrusion drive, providing high feeding force and strong stability, suitable for conveying thick plates, coils, and rods.	Steel plates, steel strips, metal rods (for CNC lathes, laser cutting machines)
Gantry feeder	Cartesian coordinate system (XYZ axes) movement, offering a large working range and high load capacity (up to tons), capable of conveying across multiple workstations.	Large workpieces, heavy parts (for machining centers, milling machines)
Belt feeder	Belt drive, providing smooth and low-noise conveying, preventing scratches, suitable for precision parts and fragile materials.	3C casings, glass parts, food packaging, medical products
Bar stock feeder	Dedicated system for conveying metal rods (round and square rods), compatible with CNC lathes, supporting continuous feeding of multiple rods.	Steel rods, aluminum rods, copper rods (for shaft parts processing)
Flexible feeder	Equipped with a vision system, it can identify disordered materials and precisely pick and place them, suitable for small-batch, multi-variety production.	Irregularly shaped parts, custom-made parts (for 3C products, medical devices)

Core Technological Advantages

1. High Automation and High Efficiency: Replaces manual feeding, enabling 24-hour continuous operation, increasing feeding efficiency by 3-5 times, and each unit can replace 2-3 workers, significantly reducing labor costs;

2. Precise Positioning: Repeat positioning accuracy can reach ±0.01mm, ensuring precise alignment of materials with the main equipment's processing station, reducing processing errors, and lowering the defect rate by more than 60%;

3. Flexible Adaptability: Supports the conveying of materials of different sizes and shapes (by changing guide grooves and adjusting parameters), adapting to small-batch, multi-variety production, with short switching time (5-10 minutes);

4. High Stability: Simple structure, low failure rate (average mean time between failures MTBF ≥ 8000 hours), adaptable to industrial environments with dust, oil, and high temperatures, with a protection rating of IP54+;

5. Strong Linkage Compatibility: Can be seamlessly integrated with CNC lathes, stamping machines, machining centers, industrial robots, and other equipment, supporting PLC signal interaction and integration into automated production lines.

Core Application Areas

1. Mechanical Manufacturing and CNC Machining Industry (Largest Application Scenario)

Core Applications:

CNC Lathe/Machining Center Support: Bar feeders automatically transport metal bars, enabling continuous processing of shaft parts;

Milling Machine/Grinding Machine Support: Gantry feeders handle workpiece loading and unloading, transporting heavy parts across workstations;

Hardware Processing: Vibratory feeders sort small parts such as screws and pins, cooperating with assembly machines for automatic assembly;

Applicable Feeder Types: Bar feeders, servo feeders, gantry feeders, vibratory feeders;

2. Automotive Manufacturing Industry

Core Applications:

Stamping Production Line: Servo feeders continuously transport steel plates and steel strips, cooperating with stamping machines to complete mass stamping of body panels, door frames, etc.;

Parts Assembly: Vibratory feeders sort automotive screws, clips, and bearings, cooperating with assembly robots for automatic installation;

Engine Processing: Gantry feeders transport engine blocks and crankshafts, circulating between multiple machine tools;

Applicable Feeder Types: Servo feeders, gantry feeders, vibratory feeders;
